DH API

Folder Structure

• The RuncontrolServices folder structure is organized into three subfolders for services: OrchestratorServices, ExecutorServices, and UploadFiles.
• Each service folder initially contains three files: an executable file, a script, and a VBS file (only for Windows for running the service in the background).

Initial Setup

• OrchestratorServices:

  • In orchestrator script, update the following as per the requirement: DB name(MSSQL or ORACLE), DB connection string, schema name and host url(ip:port).

  • The connection string will be of format:

    MSSQL
    Driver={ODBC Driver 17 for SQL Server};Server=servername;Database=dbname;UID=userid;PWD=password;

    ORACLE
    userid|password|servername:port/sid

• ExecutorServices:

  • In Executor script, update the following as per the requirement: executor url and orchestrator url.

• UploadFiles:

  • In Upload- Files script, update the following as per the requirement: DB name(MSSQL or ORACLE), DB connection string and schema name.

Starting the service

• Linux:

  • To start a specific service in Linux, simply run the corresponding script.

• Windows:

  • In Windows, starting the service in the background can be achieved by executing the specific VBS file, which internally calls the script.

Testing the service

• To ensure the functionality of the Orchestrator service, the following methods can be employed:

1. Using Curl Command:

curl -X POST --url http://127.0.0.0:6443/batch_full_status/1 -H 'Content-Type: application/json' -d '{ "as_on_date": "2023-03-31", "batch_id": 1, "token" :"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJGRjAxNjM5NEJDM0M0MEJCOUJGRjJGRTRCQzIwQkFCNyIsImlhdCI6MTY4NTY4NTI1OSwiZXhwIjoyMTQ3NDgzNjQ4fQ.QXmLhaR8IRPuZAfm9XB7Sv5G2TpSOX8-rS3YbiOdEKQ"}'

Note: Adjust the IP and port (same as provided for the Orchestrator service), as_on_date, and batch_id according to the requirements.

2. Using a Web Browser: If the curl utility is unavailable, the service can be tested by accessing the URL:

http://127.0.0.0:6443/batches/1

Note: Adjust the IP and port (same as provided for the Orchestrator service), and batch_id (/batches/batch_id) according to the requirements.

RuncontrolService Configuration

OrchestratorServices

This contains the configuration changes needs to be done for different service types.

1. ECL

• For ECL, rule configuration part needs to be updated.

• Additional Mandatory Parameters:

  #	Parameters	Description	Example
  1	client_id	The unique client identifier used to authenticate with the identity server.	72422448-d615-4b41-aea7-bef8ac3763d3
  2	client_secret	The secret key paired with the client ID for secure authentication.	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
  3	auth_url	The identity server endpoint URL used to obtain access tokens.

2. NGINX

• For NGINX, the following additional parameters need to be updated in the script.

• Additional Mandatory Parameters:

  #	Parameters	Description	Example
  1	ssl_mode	Tells the service that Nginx is handling the SSL/HTTPS layer.	NGINX
  2	is_ssl_verification_enabled	Disables SSL certificate verification within the service.	true/false
  3	host_url	The public-facing URL or address through which the Orchestrator service is accessible via Nginx.

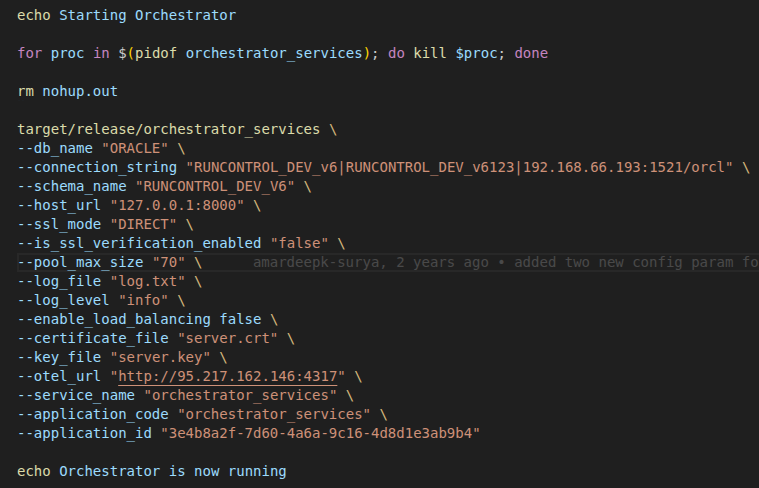

3. Otel Integration

• For otel integration, the following additional parameters need to be updated in the script.

• Additional Mandatory Parameters:

  #	Parameters	Description	Example
  1	otel_url	Specifies the OpenTelemetry Collector endpoint URL used for exporting telemetry data such as logs, metrics, and traces	http://192.168.66.91
  2	service_name	Defines the service name under which telemetry data will be reported in the OpenTelemetry platform	orchestrator_services
  3	application_code	Identifies the application code associated with the telemetry data for tracking and classification purposes	orchestrator_services
  4	application_id	Specifies the unique application identifier used to distinguish the application in the telemetry system	3e4b8a2f-7d60-4b6a-9c16-4d8d1e3ab9c4

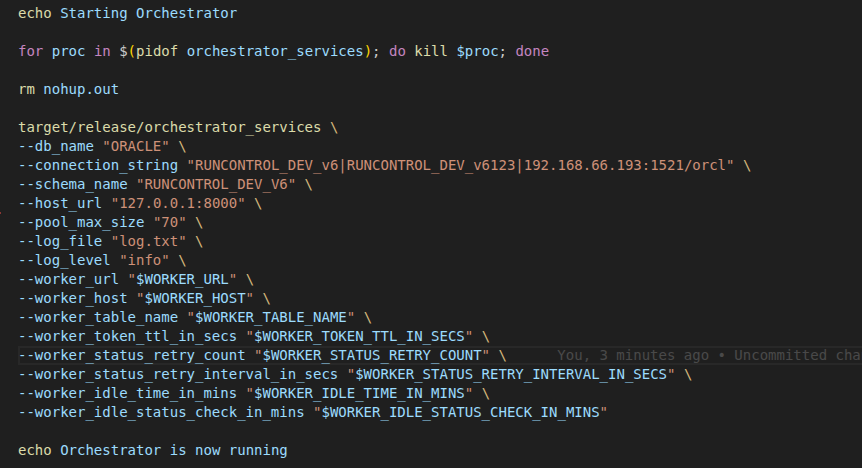

4. AWS

• For running the orchestrator services on AWS, the following additional parameters need to be updated in the script.

• Additional Mandatory Parameters:

  #	Parameters	Description	Example
  1	worker_url	Specifies the Worker API endpoint URL used for communicating with the worker service	https://vpce-0d922f47aa94.execute.amazonaws.com/SIT
  2	worker_host	Defines the host header value required for routing requests to the worker service	cd70l1mbra.execute-abc.amazonaws.com
  3	worker_table_name	Specifies the database table name used for storing or managing worker-related information.	table_name
  4	worker_token_ttl_in_secs	Defines the validity duration of the worker authentication token in seconds	300
  5	worker_status_retry_count	Specifies the maximum number of retry attempts for worker status checks	5
  6	worker_status_retry_interval_in_secs	Defines the time interval in seconds between consecutive worker status retry attempts	5
  7	worker_idle_time_in_mins	Specifies the maximum idle duration in minutes after which the worker is considered inactive	5
  8	worker_idle_status_check_in_mins	Defines the interval in minutes for performing idle status checks on the worker	5

ExecutorServices

This contains the configuration changes needs to be done for different service types.

1. NGINX

• For NGINX, the following additional parameters need to be updated in the script.

• Additional Mandatory Parameters:

  #	Parameters	Description	Example
  1	ssl_mode	Tells the service that Nginx is handling the SSL/HTTPS layer.	NGINX
  2	is_ssl_verification_enabled	Disables SSL certificate verification within the service.	true/false
  3	orch_url	The public-facing URL or address through which the Orchestrator service is accessible via Nginx.
  4	exec_url	The public-facing URL or address through which the Executor service is accessible via Nginx.

• Along with script change, the ip present in ExecutoDef table also needs to be changed.
